Installing a home lift is one of the best ways to improve accessibility, convenience, and property value. However, before selecting a lift model, it’s important to understand the space required for installation. The right dimensions ensure smooth operation, passenger comfort, and efficient use of available space.
Whether you’re constructing a new house or upgrading an existing one, understanding home lift dimensions in India will help you make an informed decision. This guide explains standard cabin sizes, shaft requirements, and practical space-planning tips for Indian homes.
Why Are Home Lift Dimensions Important?
Every home has a different layout, so choosing the correct lift size is essential. A properly planned elevator not only fits seamlessly into the available space but also improves safety, comfort, and long-term performance.
Correct dimensions help:
- Maximize available space
- Improve passenger comfort
- Simplify installation
- Reduce unnecessary civil modifications
- Ensure smooth elevator operation
- Support future accessibility needs

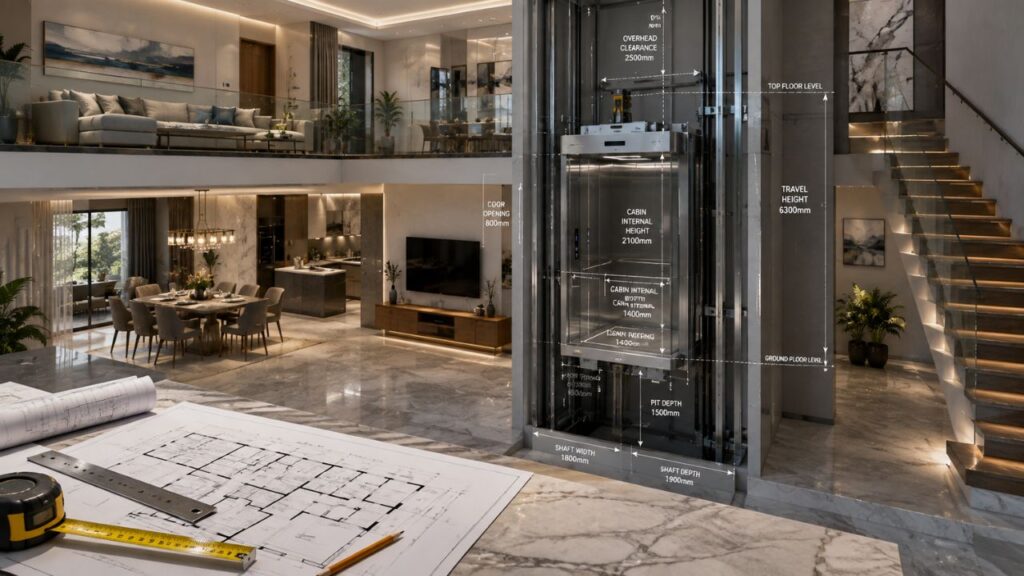

Standard Home Lift Dimensions in India
Home elevators are available in different sizes depending on passenger capacity and building requirements. The exact dimensions vary by manufacturer and model, but the following are commonly used configurations.
| Passenger Capacity | Approximate Cabin Size (W × D) |
| 2 Persons | 800 × 1000 mm |
| 3 Persons | 900 × 1200 mm |
| 4 Persons | 1000 × 1300 mm |
| 5–6 Persons | 1100 × 1400 mm |
These dimensions are indicative only. The final cabin size depends on the selected lift model and project requirements.
Understanding Lift Shaft Requirements
The elevator shaft is the enclosed vertical space in which the lift travels. Its size depends on the cabin dimensions, door configuration, and the elevator technology being used.
Before installation, professionals evaluate:
- Available installation area
- Cabin dimensions
- Door opening width
- Guide rail placement
- Structural support
- Electrical provisions
Planning the shaft correctly during the construction stage can help avoid costly modifications later.
Space Requirements for Different Home Lift Types
Different elevator technologies require different amounts of space.
Hydraulic Home Lift
- Hydraulic lifts are commonly used in villas and low-rise homes. They offer smooth operation and are suitable where sufficient installation space is available.
Machine Room Less (MRL) Lift
- MRL elevators eliminate the need for a separate machine room, making them a practical option for homes where space optimization is important.
Traction Home Lift
- Traction elevators are designed for energy-efficient operation and are well suited for homes with multiple floors and frequent usage.
Pitless Home Lift
- Pitless home lifts require minimal civil work, making them an ideal choice for existing homes where excavation is difficult.
How Much Space Is Needed for a Home Lift?
The total installation area depends on several factors, including:
- Cabin size
- Shaft dimensions
- Number of floors
- Door type
- Travel height
- Lift technology
- Structural layout
A professional site survey helps determine the most suitable lift size without compromising your home’s usable space.
Pit and Overhead Requirements
Some elevator systems require a pit below the ground floor and overhead clearance above the top landing. However, these requirements vary depending on the lift design.
Modern residential elevators, including certain pitless and low-pit models, can reduce the amount of civil work required. Your elevator manufacturer will recommend the appropriate configuration after evaluating your home.
Planning Tips Before Installation
Proper planning ensures a smoother installation process and better long-term performance.
Consider the following before installing a home lift:
- Select the installation location during the design stage.
- Choose a lift capacity that suits your family’s needs.
- Leave sufficient space for comfortable entry and exit.
- Ensure an appropriate electrical connection is available.
- Consult an experienced elevator manufacturer before beginning civil work.
Early planning can save both time and construction costs.
Safety Features to Look For
A modern home lift should include reliable safety systems such as:
- Automatic Rescue Device (ARD)
- Door Safety Sensors
- Emergency Alarm
- Battery Backup
- Overload Protection
- Automatic Door Interlock
- Emergency Stop Button
- Smooth Floor Levelling
These features help provide safe and dependable operation every day.
Why Choose Aircon Elevators Pvt. Ltd.?
Aircon Elevators Pvt. Ltd. designs and manufactures customized home elevators for Indian residential projects.
Our solutions include:
- Compact Home Lifts
- Hydraulic Home Elevators
- MRL Home Lifts
- Pitless Home Elevators
- Customized Cabin Sizes
- Premium Interior Finishes
- Professional Installation
- Annual Maintenance Contracts (AMC)
- Reliable After-Sales Service
Our experienced team helps homeowners choose the ideal lift dimensions based on their available space and future requirements.
Frequently Asked Questions
Most home lifts are available in different cabin sizes based on passenger capacity. The final dimensions depend on the selected model and installation requirements.
The required space varies according to the lift type, cabin size, shaft dimensions, and number of floors. A site inspection provides accurate measurements.
Yes. Compact and pitless home lifts are designed for homes with limited space and often require minimal structural modifications.
No. Machine Room Less (MRL) elevators are designed without a separate machine room, making them a popular choice for modern homes.
Yes. Aircon Elevators Pvt. Ltd. offers customized home elevator solutions tailored to your home’s layout, available space, and design preferences.
Choosing the correct home lift dimensions is an essential part of planning a safe and efficient residential elevator. From cabin size and shaft requirements to lift technology and available space, every factor plays an important role in ensuring a successful installation.
If you’re planning to install a home lift in your villa, duplex, or independent house, Aircon Elevators Pvt. Ltd. offers customized solutions designed to fit your home perfectly while delivering comfort, safety, and long-term reliability.
Contact our experts today for a free site inspection and personalized home lift consultation.
